Best Price for Digital Storage Oscilloscope Portable

DS213 is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core. DS213 uses FPGA to manage external ADC’s control and data cache mode. It provides 4 application partitions for loading and upgrading up to 4 different application firmware. It also has built-in 8MB USB flash drive for storing waveforms and upgrading system firmware. The oscilloscope code application layer is open source, and users can develop oscilloscope firmware according to their needs
, oscilloscope portable metrix, oscilloscope numérique portable, oscilloscope portable ouedkniss, fluke portable oscilloscope price, portable pc oscilloscope, portable oscilloscope dso, portable oscilloscope reddit, best portable oscilloscope review, r&s portable oscilloscope, portable oscilloscope scopemeter, oscilloscope telephone portable, uni-t portable oscilloscope, portable oscilloscope uk, portable usb oscilloscope, oscilloscope portable 4 voies, oscilloscope portable 2 voies, best portable oscilloscope 2018, best portable oscilloscope 2019, 2 channel portable oscilloscope, 4 channel portable oscilloscope, oscilloscope portable velleman, oscilloscope portable hantek, oscilloscope portable rewiev, oscilloscope portable occasion, oscilloscope portable dso nano v3, oscilloscope portable tektronix, oscilloscope portable prix
Features:
l Mini size, light weight, portable and handheld;
l It can store waveforms, making waveform analysis clearer and more effective;
l Multiple trigger modes, support Ascend/Descend Edge Trigger, Positive/Negative Pulse Trigger, and Logic Trigger;
l Powerful ability to process waveforms, it can automatically measure parameters such us voltage, frequency and pulse width.

MINI DS213 Digital Storage Oscilloscope Portable 15MHz Bandwidth 100MSa/s Sampling Rate 2 Analog Channels+2 Digital Channels 3 Inch Screen With Logic Trigger

Specifications:
CPU: ARM Cortex M3
FIFO & Control: FPGA
ADC: HWD9288-100
Analog Channels: 2([CH_A] [CH_B])
Digital Channels: 2([CH_C] [CH_D])
Operation Channel: INV [CH_A], INV [CH_B], [CH_A]+[CH_B], [CH_A]-[CH_B],[CH_C]&[CH_D],[CH_C] | [CH_D]
Vertical Sensitivity: 10mV-10V/div (1-2-5 STEP) (using X1 probe)
100mV-100V/div (1-2-5 STEP) (using X10 probe)
Vertical Resolution: 8 bits
Sample Memory Depth: 4 channels, 4*4K
Coupling: DC, AC
Max Input Voltage: ±40Vpp (using X1 probe)
±400Vpp (using X10 probe)
Trigger Types: Ascend/Descend Edge Trigger Mode, Positive/Negative Pulse Trigger, Logic TriggerTrigger Mode: Auto, Normal, Single, Slow
Trigger Source: [CH_A] [CH_B] [CH_C] [CH_D]
Signal Source: Square Wave: 10Hz to 8MHz, in total 20 shifts and 3 Vpp Signal Sources;
Sine/Triangle/Sawtooth Wave: 10Hz to 20MHz, in total 11 shifts and 3 Vpp Signal Sources
Storage: built in 8M USB disk
File Types: BMP,BUF,CSV
Auto Measurement Types: Signal sequence/cycle/duty ratio, peak voltage/virtual value/max value/min value/average
Cursor Measurement: Time value, Amplitude value
Display Modes: 4 wave lines: Line 1: [CH_A], HIDE
Line 2: [CH_B], HIDE
Line 3: [CH_C], REC_1, REC _2, REC _3, REC _4, HIDE
Line 4: [CH_D], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] | [CH_D], HIDE
Sampling Mode: Real-time Sampling
Sampling Rate: 100M Sa/s
Battery: 1000mAh
Size: 99.5mmx58.5mmx13.5mm
Weight: 129g (with battery)
Certificate: CE, FCC

Package Includes:
1 x DS213 oscilloscope
2 x Test Proes
1 x one Set of accessories

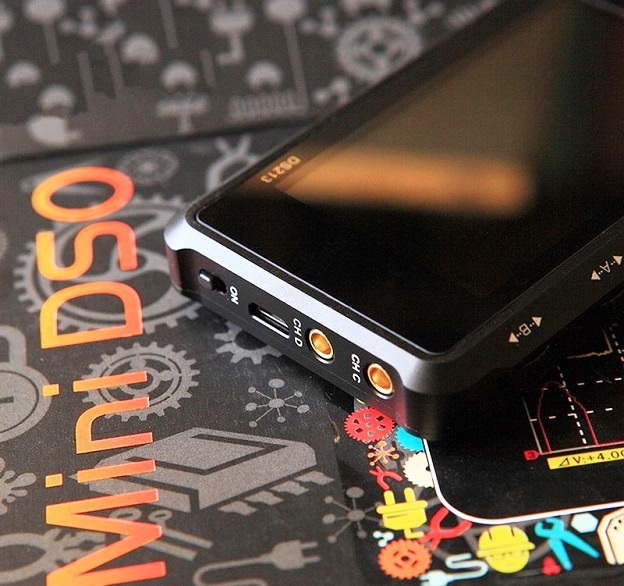

Details Pictures:
